A rigorous breakdown of load bearing, pulley friction coefficients, and metallurgic tolerances required for high-traffic facilities.
Commercial cable crossover systems and multi-stack functional trainers represent the architectural centerpiece of modern strength training facilities. When commercial gyms, sports performance complexes, and institutional procurement agents assess cable crossover machine factories in China, technical compliance extends far beyond surface powder coating. The baseline benchmark for international export demands strict conformity with EN ISO 20957-1 and EN ISO 20957-2 (Class S: Commercial Use), mandating safety margins that prevent catastrophic cable failure under peak dynamic tension.
Top-tier China manufacturing leverages heavy-gauge cold-rolled flat oval (typically 50×100mm or 60×120mm) and structural square tubing with guaranteed minimum wall thicknesses of 2.5mm to 3.0mm. High-precision laser robotic welding ensures full metallurgical penetration along all structural intersections. Sub-frame base plates feature laser-cut gusset reinforcements to counteract lateral deflection when dual athletes perform concurrent maximal-load crossovers (e.g., 100 kg per weight stack). Robotic double-pass electrostatic powder coating preceded by automated zinc phosphating anti-corrosion treatment ensures rust inhibition exceeding 500 hours of continuous salt spray testing (ASTM B117).
Industrial performance cable machines utilize 7×19 strand mil-spec aircraft cables (diameter 5.6mm to 6.0mm including extruded nylon or fluoropolymer outer cladding). With an ultimate tensile breaking strength calibrated over 2,200 kgf (approx. 21.6 kN), these cables eliminate internal core stretch during high-velocity eccentric loading. Simultaneously, pulley sheave material determines friction drag: while budget fitness equipment adopts unreinforced glass-fiber nylon, export-grade commercial crossover towers incorporate CNC-machined aviation aluminum alloy pulleys or lubricated Delrin sheaves paired with dual sealed NSK/SKF 6202 deep-groove ball bearings, bringing kinetic friction coefficients below μ = 0.03.
| Engineering Attribute | Standard Export Specification (Heavy Commercial) | Standard Light Commercial / Residential | Critical Sourcing Risk Factor |
|---|---|---|---|
| Steel Tubing Standard | Q235/Q345 Cold-drawn Steel, 3.0mm Nominal Wall | 1.5mm - 2.0mm Commercial Mild Steel | Frame flexing under bilateral crossover load; premature structural weld fatigue |
| Cable Assembly | 7×19 Mil-Spec Aircraft Cable, 5.8mm OD with Nylon Jacket | 7×7 Strand Cable, PVC Coated, 4.8mm OD | Internal strand snap; outer sheath peeling causing pulley binding and jamming |
| Pulley Wheel Construction | CNC Billet Aluminum / Delrin with Dual Sealed SKF Bearings | Molded Polypropylene with dry carbon steel bushing | Groove deformation; high cable friction; jerky dynamic travel during presses |
| Weight Stack Plates | Precision Machined Solid Steel Plates with Magnetic Pin Locking | Cast Iron or Sand-filled Plastic Encased | Weight discrepancies exceeding ±5%; cracked plate sleeves; selector misalignment |
| Vertical Column Adjustments | Laser-cut 28–36 Pin Settings with Spring-loaded Pop-Pin and Stainless Liner | Stamped holes (15–20 settings) over painted mild steel | Powder coat chipping, rust buildup, stuck pin indexing during peak usage |
Anticipate global shifts in inventory turnover, localized shipping constraints, and evolving fitness floorplans.
Global sea-freight container rates demand optimized CBM efficiency. Modern crossover towers are built with knock-down precision joinery, reducing crated ocean shipping volume by 38% compared to pre-welded unitary systems without compromising fully assembled structural rigidity.
Commercial gym buyers are transitioning to smart weight stack architectures. Built-in optical sensors, Bluetooth/ANT+ IoT rep-trackers, and digital load monitoring allow club operators to conduct real-time utilization audits and scheduled preventive maintenance on cable strain.
Procurement demands are favoring multi-station crossovers that integrate multi-grip chin-up rafters, built-in landmines, band pegs, and modular suspension anchors into a single footprint, turning standalone cable towers into complete functional training islands.
How state-of-the-art Chinese industrial fitness facilities streamline quality, lead time, and precision tolerances.
By transitioning from manual drilling and stamped tooling to automated 3D tube fiber-laser cutting, every cable column pinhole achieves positional repeatability of ±0.05mm, preventing sticky selector pins and premature chrome-plating wear.
Traditional lead/iron weight stack blocks are increasingly complemented by high-torque brushless servo-motor magnetic resistance units, enabling eccentric overloading, isokinetic training modes, and zero-weight momentum inertia.
Compliance with global ESG benchmarks drives the deployment of low-VOC thermosetting TGIC-free coatings paired with high-molecular-weight polyethylene (HMWPE) sound-dampening stack guide bushings for whisper-silent operation.
Combining 14 years of dedicated OEM/ODM prowess with audited production processes and comprehensive supply-chain control.
Our complete manufacturing operation, staff qualifications (87+ verified technical experts), and export compliance are thoroughly verified on-site by SGS Group, guaranteeing total order safety.
From minor custom branding (laser-cut company plates, silk-screen shields, and branded color ways) to full bespoke CAD/CAM frame engineering and sample prototyping within 15–20 days.
Every cable crossover machine undergoes full functional assembly prior to packaging: cable travel checks, weight selector verification, load cell stress testing, and drop-impact crate testing.
Direct supply capability across strength machines, dumbbells, kettlebells, mats, and functional equipment allows importers to consolidate mixed containers directly at our factory dock.
CNC Punching & Stamping Lines
Molding & Polymer Processing
Automated Foaming & Cushioning
Automated Protective Export Packing
Clear, direct answers regarding production lead times, quality certifications, and minimum order requirements.
For custom logo, custom frame color, and bespoke shroud graphics, our standard MOQ starts at 5 to 10 units for heavy commercial strength machines. In-stock or standardized baseline models can be dispatched starting from a single unit for prototype showroom evaluation.
Every cable system undergoes automated cycling tests simulating 100,000 continuous full-stroke repetitions under maximum stack weight load. Cable ferrules, terminal fittings, and pulley bearings are verified with dynamic load cell gauges to guarantee zero slippage under sudden shock loads.

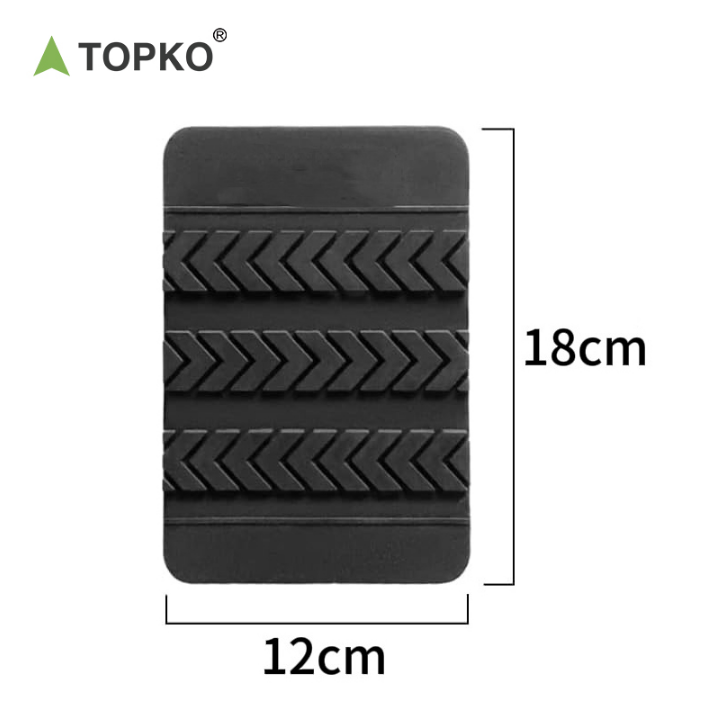

Yes. As a full-scope fitness manufacturer with over $19.9M in annual export capacity, we frequently consolidate multi-station cable machines with cast-iron kettlebells, urethane dumbbells, rubber squat wedges, and yoga accessories into single 20GP or 40HQ containers to drastically reduce client freight overhead.
We provide a 10-year warranty on structural steel mainframes, 3 years on guide rods and weight stacks, and 1 year on high-wear components (cables, pulleys, selector pins). We supply 2% complimentary wear-and-tear replacement consumables with every full container shipment.
Yes. Our commercial fitness systems comply fully with EN ISO 20957 Class S commercial standards and CE regulations. Material test certificates covering tensile steel yield strength and phthalate-free upholstery compliance can be provided upon order initiation.
Typical lead times for complete OEM container orders range from 30 to 45 business days upon 3D drawing signoff and deposit clearance. Customized prototype samples are completed and ready for inspection within 15 to 20 days.
